Dew Point Monitor – W Series

This wall mount dew point monitor is suitable for refrigerant, desiccant and membrane dryers. The sensor design provides long-term, reliable, high-accuracy measurements.

The Dew Point Monitor is available with an in-built display and alarm (red/green light and buzzer).

Best suited to

• Where a permanent monitor and alarm feature is required
• Refrigerant, membrane or desiccant dryers
• Indoor applications

Key features of the Wall Mount Dew Point Monitor

• Ultra fast response time
• Accuracy +/- 2°C
• Suitable for refrigerant, membrane or desiccant dryers
• Dew Point Measurement Range options:
  • -60°C to +60°C (-76°F to +140°F)
  • -80°C to +20°C (-112°F to +68°C)
  • -110°C to +0°C (-166°F to +32°F)
• Excellent long term stability
• Anti-condensation, anti-particulate pollution, oil vapour and most chemicals
• Optional integrated pressure transducer
• High resistance to electrical disturbances

Important

• A minimum flow rate of > 1 L/min is required for the sensor to read accurately
• The sensor must be installed in an upright position, after the dryer.
• Incorrect wiring or installation can damage the sensor and void the warranty. If you aren’t sure how to install or wire the sensor, please contact us. Full installation and wiring instructions are available in the User Manual.

Wall Mount Dew Point Monitor comes with:

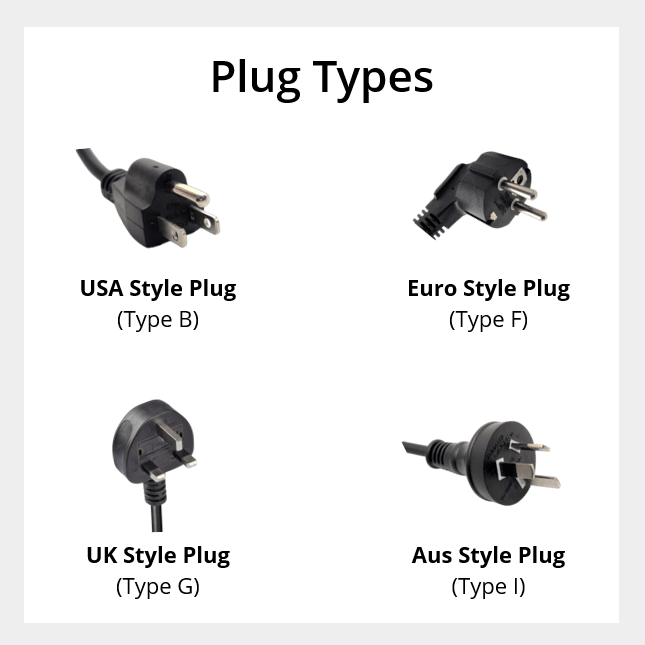

• 1.5 meter power cable with USA, EURO, UK or Australian power plug
• 6 mm PTFE tube with nitto fitting. Tube length: 1.5 meters (5 foot) long
• Calibration certificate
• User Manual
• 12 month warranty

Options for the Wall Mount Dew Point Monitor

• Integrated pressure sensor
• Dew Point ranges:
  • -60°C to +60°C (-76°F to +140°F) or
  • -80°C to +20°C  (-112°F to +68°F) or
  • -110°C to +0°C (-166°F to +32°F)
• 1.5 meter power cable suitable for USA, EURO, UK or Australian power sockets
• Gas Types: Air, Argon, Carbon Dioxide, Carbon Monoxide, Helium, Hydrogen, Nitrogen, Oxygen

Warranty & Calibration

12 month warranty

Calibration is recommended every 2 years (provided the sensor is not exposed to relative humidity above 85%).
Annual calibration is required if the sensor is exposed to relative humidity above 85%.

Accessories

Accessories such as mechanical and electrical fittings are available.

Other information

Part Numbers

• -60°C to +60°C (-76°F to +140°F) Dew Point Range: DEW011001, DEW012001, DEW013001, DEW014001, DEW015001, DEW111001, DEW112001, DEW113001, DEW114001, DEW115001

• -80°C to +20°C (-112°F to +68°F) Dew Point Range: DEW021001, DEW022001, DEW023001, DEW024001, DEW025001, DEW121001, DEW122001, DEW123001, DEW124001, DEW125001
• -110°C to +0°C (-166°F to +32°F) Dew Point Range: DEW031001, DEW032001, DEW033001, DEW034001, DEW035001, DEW131001, DEW132001, DEW133001, DEW134001, DEW135001
