This economical, mini dew point sensor is suited to small spaces. Measure pressure dew point (PDP), relative humidity, temperature.
Pressure Dew Point (PDP) Range
-60°C to +60°C (-76°F to +140°F)
Gas Pressure Range
up to 50 bar (725 psi)
Dryer Types
Refrigerant or Membrane Dryers
Gas Quality
Some contamination (ie oil, particles or water vapour)
Accuracy
Dew point measurements: ±2%
Temperature measurements: ±0.5 °C
Measure
Pressure dew point (PDP), Relative Humidity and Temperature
Display
No display
Output
Modbus (RS485) and 4-20mA
Power requirement
10 to 30 VDC, max 50 mA @ 24 V
Alarm
No alarm or alarm relay
Sensor Technology
Polymer sensor
Application
Manufacturing and industrial use
Temporary or permanent installation
Accessories
Extra M12 connectors and data cables are available.
This compact dew point sensor is suitable for refrigerant, desiccant, drum and membrane dryers. Its proven polymer film technology provides strong contamination resistance. The precision sensor design compensates for drift caused by temperature, contamination and aging, providing long-term, reliable, high-accuracy measurements.
Best Suited to:
- Compressed air and gas systems to 4 Mpa (600psi)
- Refrigerant, Drum and Membrane dryers operating above -40°C (-40°F)
- Dew point range of -60°C to +60°C (-76°F to +140°F)
- Cost sensitive applications
- Small spaces
- Flow rates greater than 1 L/min
- Permanent or temporary installation
Key Features of the Mini Dew Point Sensor
- Suitable for Refrigerant, Drum and Membrane dryers, up to 4 Mpa (600psi)
- Dew Point Measurement Range: -60°C to +60°C (-76°F to +140°F)
- Accuracy +/- 2°C
- Fast response time
- Strong contamination resistance
- Aluminium or Stainless Steel Casing
- Dimensions: 107 mm long x 28 mm wide (4.2″ x 1.1″)
- Modus and 4-20mA outputs
- Measure:
- Pressure Dew Point (PDP)
- Gas temperature
- Relative humidity
Important
- A minimum flow rate of > 1 L/min is required for the sensor to read accurately
- This sensor does not measure pressure
- Relative humidity must not exceed 85%
- The sensor must be installed in an upright position, after the dryer.
- Incorrect wiring or installation can damage the sensor and void the warranty. If you aren’t sure how to install or wire the sensor, please contact us. Full installation and wiring instructions are available in the User Manual.

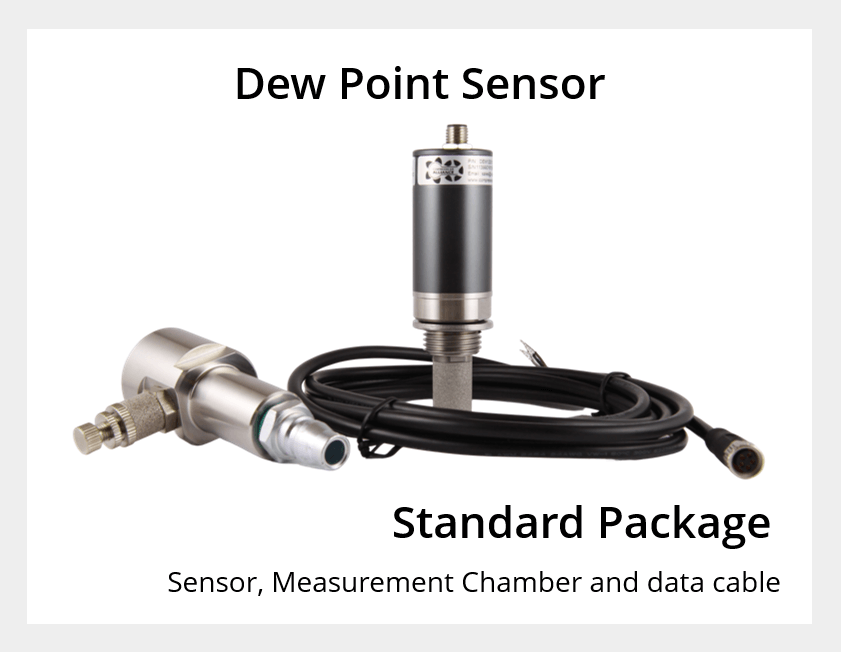

Mini Dew Point Sensor comes with:
- Measurement Chamber with adjustable silencer and removable Nitto type quick connect
(contact us for other measurement chamber options) - M8 connector, 5 pin
- 5 meter data cable
- Calibration certificate
- User Manual
- 12 month warranty
Options for the Mini Dew Point Sensor
- Casing: Aluminium or stainless steel
- Gas Types: Air, Argon, Carbon Dioxide, Carbon Monoxide, Helium, Hydrogen, Nitrogen, Oxygen
- Contact us for other measurement chambers or cable lengths.
Warranty & Calibration
12 month warranty
Calibration is recommended every 2 years (provided the sensor is not exposed to relative humidity above 85%).
Annual calibration is required if the sensor is exposed to relative humidity above 85%.
Accessories
Accessories such as mechanical and electrical fittings are available.
Other information
Part Numbers: DEM100001, DEM200001
| Weight | 1 kg |
|---|---|
| Dimensions | 23 × 16 × 10 cm |
Specifications
General
Technology |
Polymer |
Dryer Types |
Compressed air and gas systems up to 4 MPa (600 PSI) with dryers operating at or above -40°C (-40°F)
|
Gases |
Air, Argon, Carbon Dioxide, Carbon Monoxide, Helium, Hydrogen, Nitrogen, Oxygen |
Accuracy |
Dew Point: ±2°C
Temperature: ±0.5°C Note: the accuracy of the sensor is affected by on-site conditions. Contaminants such as oil, moisture, particles or other impurities can affect the calibration and accuracy of the sensor. |
Minimum Gas Flow Required |
> 1 litre per minute |
Measurement Ranges
Dew Point Measurement Range |
|
Gas Temperature Measurement Range |
|
Output
Outputs |
|
Modbus Output Signals |
Note: The Mini Dew Point Sensor does not have an integrated pressure sensor. |
Analogue Output Signals |
|
Power Supply
Power |
10 to 30VDC / Max 50 mA + 4-20mA Current output |
Electrical Connection |
5 pin M8, female |
EMC |
According to IEC 61326-1 |
Other Information
Measurement Chamber |
Measurement Chamber with adjustable silencer and removable Nitto type quick connect
Contact us for other measurement chamber options |
Process Connection |
G1/2” thread
Contact us for UNF process connection |
Ambient Temperature Range |
|
Relative Humidity |
0 to 95% RH |
Working Pressure |
0 to 50 bar (725 psi) |
Dimensions |
|
Casing |
|
IP Rating |
IP65 |
Installation Type |
Permanent installation, or Temporary installation |
Calibration Frequency |
|
Warranty Period |
12 months |
