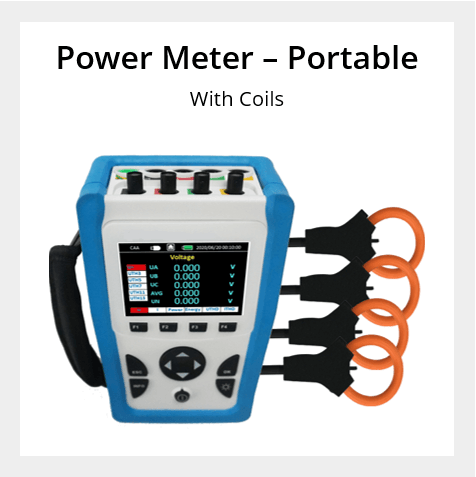

This portable power meter and data logger is ideal for temporary measurements or where a portable (hand held) device is required.
Type
3 phase portable power meter with data logger
Mounting
NA – Hand held device
Measured Voltage and Frequency
100V to 500V, 50/60Hz
Measurements
Voltage, amps, frequency, power factor, real power, reactive power, apparent power and harmonics
Accuracy
±2%
Display
TFT screen display
Rogowski Coils options
500 amps, 1,000 amps or 3,000 amps
Power requirement
2 x 2900mAh lithium battery or 5V DC power supply
SD Card
1 GB memory SD card, save up to 12 years of data
Application
Temporary installation
Manufacturing and industrial use
Sub metering individual equipment or sub loads
This portable power meter and data logger is ideal for temporary measurements or where a portable (hand held) device is required. It measures current and voltage and reports real-time RMS values for all 3-phases and neutral. In addition, the portable meter calculates power factor, real power, reactive power, and more.
Monitoring power can help you:
- Reduce operating and energy costs
- Improve understanding of energy usage (eg spikes, variation, usage)
- Identify phase and voltage issues
- Identify power factor and harmonic issues
- Compare and challenge your energy bill
- Improve efficiency and reduce waste
- Monitor individual equipment usage or sub system loads
Best suited to
- 3 phase or single phase measurements
- Where a portable solution is needed
- Temporary installations
Key features of the Portable Power Meter
- Measure voltage, amps, frequency, power factor, real power, reactive power, apparent power and harmonics
- Built in display for easy reading and configuration
- 1 GB memory SD card, save up to 12 years of data
- Battery powered or 5V DC power supply
- Can be used for sub metering individual equipment or sub loads
- Easy to install rogowski coil current transducers (optional)
- 12 month warranty
Options for the Portable Power Meter
- Rogowski Coil current rating – 500 amps, 1,000 amps or 3,000 amps
Contact us for other Rogowski Coil sizes.
Warranty
12 month warranty
Other Information
Part Numbers: POM400000, POM400100, POM400200, POM400300
| Weight | N/A |
|---|---|
| Dimensions | N/A |
Specifications
General
Type |
Portable power meter
Multi-function, suitable for power analysis |
Mounting |
NA – Hand held (portable) device |
Poles Description |
|
Display |
TFT screen display |
Accuracy |
±2%
Note: the accuracy of the sensor is affected by installation location and on-site conditions. |
Measured Voltage and Frequency |
|
Sampling Rate |
8,000 samples per second |
Harmonic |
51th in the mean time |
Data Recording
Record Interval |
1s to 9999s (default 1min) |
Record Format |
Export to csv |
Record Capacity |
Store about 2.5K Bytes data each time
Record up to 12 years of data (1min interval) |
Outputs
Output |
Digital: RS485 Modbus / RTU |
Output Signals |
|
Inputs
Input Type |
External Rogowski coil |
Primary current range |
Adjustable from 0.5A to 7200A |
Measurement Input range |
1/2 ^25mV to 707mV |
Permissible overload |
2V for 10s/hours |
Power Supply
Power Supply |
2 x 2900mAh PANASONIC lithium battery
5V DC power supply (adapter included) |
Other Information
Dimensions |
|
Weight |
|
Ambient Temperature Rang |
|
IP Rating |
IP20 |
Installation Type |
Temporary installation |
Warranty Period |
12 months |
